Vgate iCar Pro elm327 V2.3 OBD 2 OBD2 Car Auto diagnostic Scanner WIFI Bluetooth 4.0 for IOS Scan Tool ODB2

Tips: Support OEM

Features:

•Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
•Clear trouble codes and turn off the MIL ("Check Engine" light)
•Engine RPM
•Calculated Load Value
•Coolant Temperature
•Fuel System Status
•Vehicle Speed
•Short Term Fuel Trim
•Long Term Fuel Trim
•Intake Manifold Pressure
•Timing Advance
•Intake Air Temperature
•Air Flow Rate
•Absolute Throttle Position
•Oxygen sensor voltages/associated short term fuel trims
•Fuel System status
•Fuel Pressure

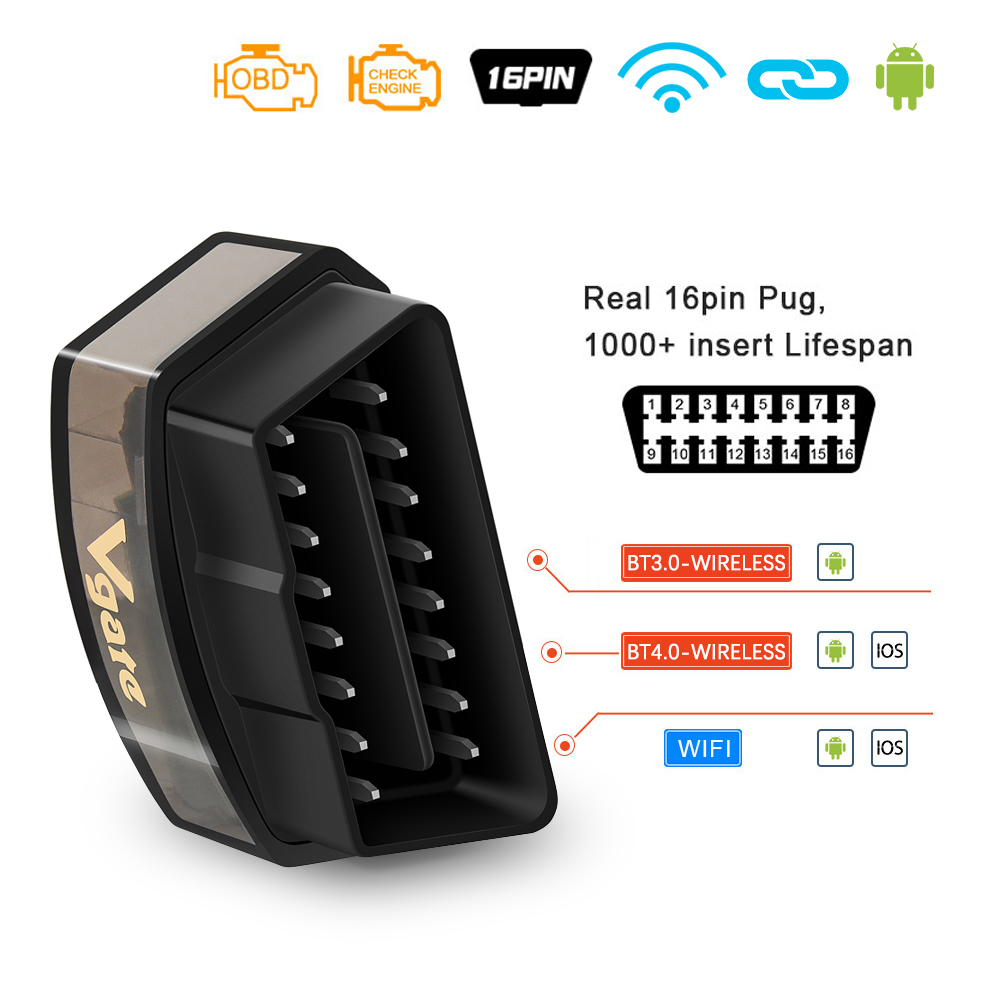

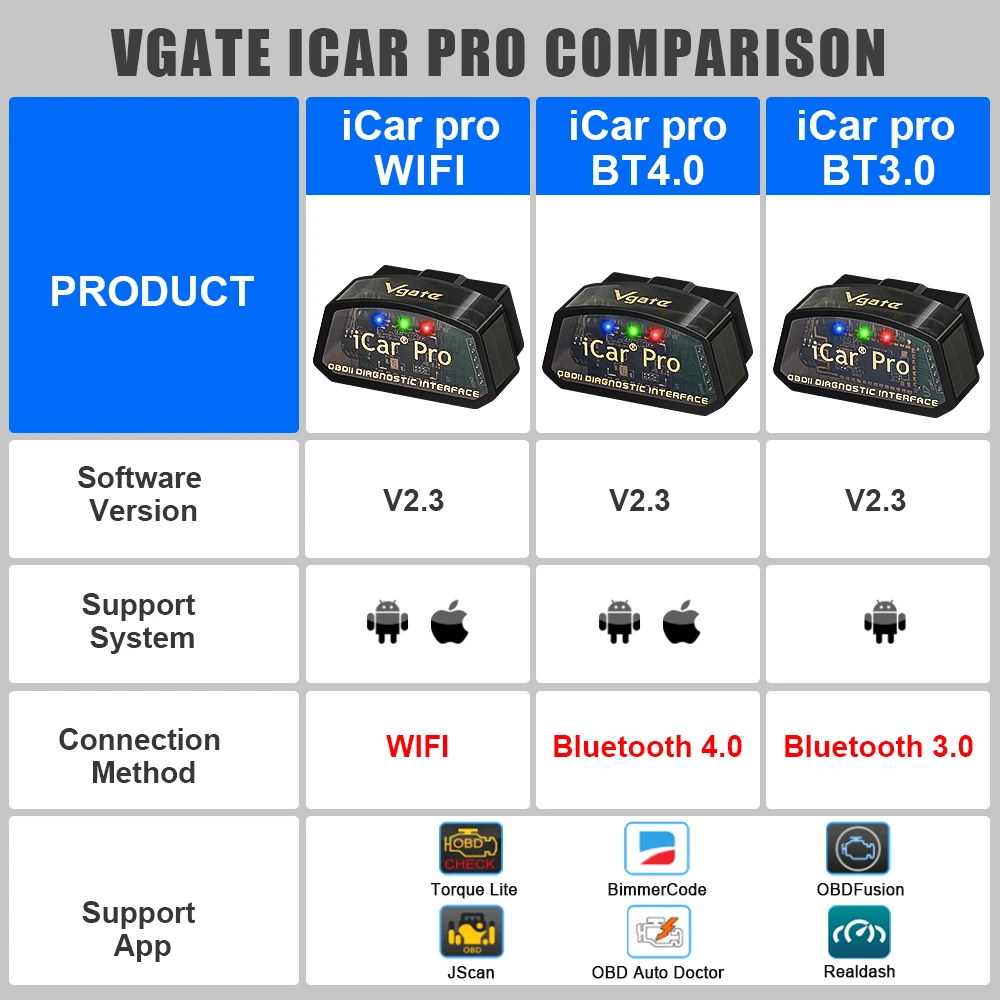

100% Original iCar Pro Connection Method：

1.BT3.0 for Android
2.BT4.0 for Android/IOS
3.WIFI for Android/IOS

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250 * Kbaud)

USER1 CAN (11 * bit ID, 125 * Kbaud)

USER2 CAN (11 * bit ID, 50 * kbaud)

* Default Settings (User Adjustable)

How to connect Vgate iCar Pro:

Low Energy Consumption

  After the engine is stopped for 30 minutes, Vgate iCar Pro Bluetooth 3.0 goes to sleep and won't drain your automobile's battery.

Attention: For petrol vehicles

  Its sophisticated triggers will wake up Vgate iCar Pro when you connect via Bluetooth, unlock doors, or crank the engine.

1pc x Vgate iCar Pro BT3.0 OBDII adapter

1pc x User manual
