Battery Terminals(A6)
★ Comes in pairs (one positive, one negative)

★ Made of 6061 aluminum, it has high toughness and good corrosion resistance

★ Only works with tapered SAE post(top post)

★ Works with 1/0AWG welding cable and oversized 1/0AWG wire

★ Vgate battery terminals can be used with the battery for: Car, Caravan, Motorhome, Truck, Houseboat, Motorcycle, Forklift, Crane …
(0/5)
Quantity
Pieces
100 Units in Stock
$ 32.99
$ 37.99
Buy Now
Add to Cart
Free Shipping to Most States
30-Day Return & Refund Service
Please download the latest user manual.
Product Details

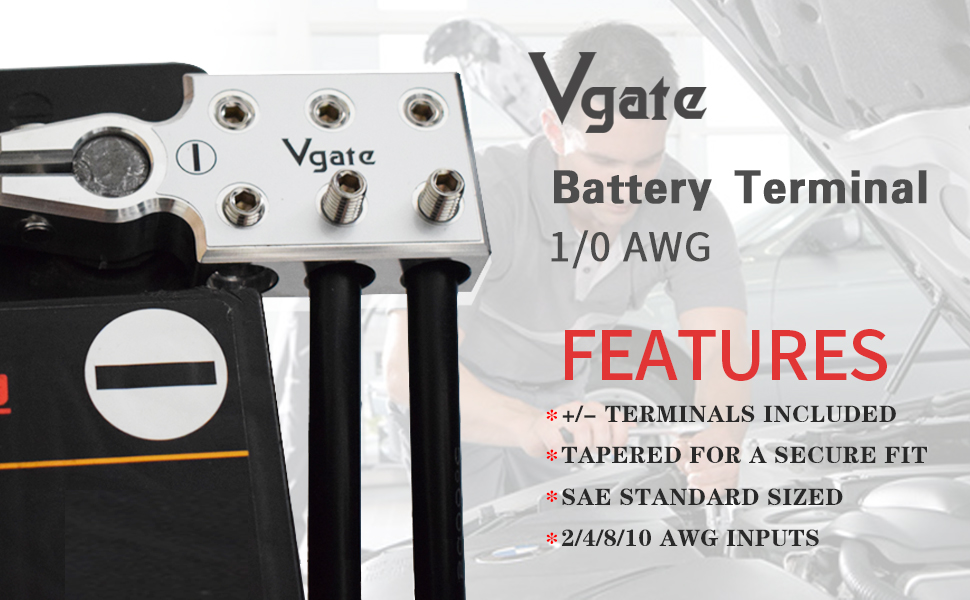

Vgate 6x1/0 AWG Gauge AGM Lead Acid Battery Terminal Clamps Positive and Negative for SAE/ DIN/ EN Tapered Top

Vgate battery terminals are machined from 6061 aluminum.

     In addition to high precision, it also has high toughness and good corrosion resistance.

  ● Comes in pairs (one positive, one negative) (+/-)

  ● The 6-hole holders exactly to hold 0 (1/0) AWG welding cable, and also can hold other gauge cables:2 AWG, 4 AWG, 6 AWG, 8 AWG and so on, but the size of holders are bigger than the above-mentioned gauges.





· Fits Following Lead-Acid Batteries:

1. Battery Type: Lead Acid Batteries (AGM, GEL, WET, MF and CA/CA)

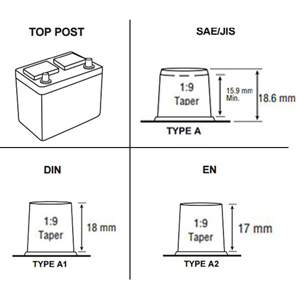

2. Tapered Post Type: SAE, DIN, EN (But JIS Pencil Post Not Included).

3. Battery Voltage: 48V, 36V, 24V, 12V, 6V

   4.Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane,


Please Note:

Hole Holder Size Clarification:

1/0AWG wire diameter is 0.3249 inch (8.2525mm), the hole holder diameter is more than enough to hold 1/0AWG wire.

















Important Notice

1)Hole Holder Size Clarification:

· 1/0AWG wire diameter is 0.3249 inch (8.2525mm), the hole holder diameter is more than enough to hold 1/0AWG wire;

2)Application for SAE/ EN/ DIN:

· It's very important to lengthen the handle of Allen key to long enough as the attached picture, because short handle allen key cannot work.

· Our Vgate terminal clamp is very strong to ensure safety.

· Note: This product does not include this wrench.


Package Includes:

 1 X Positive Battery Terminal Clamp

 1 X Negative Battery Terminal Clamp
