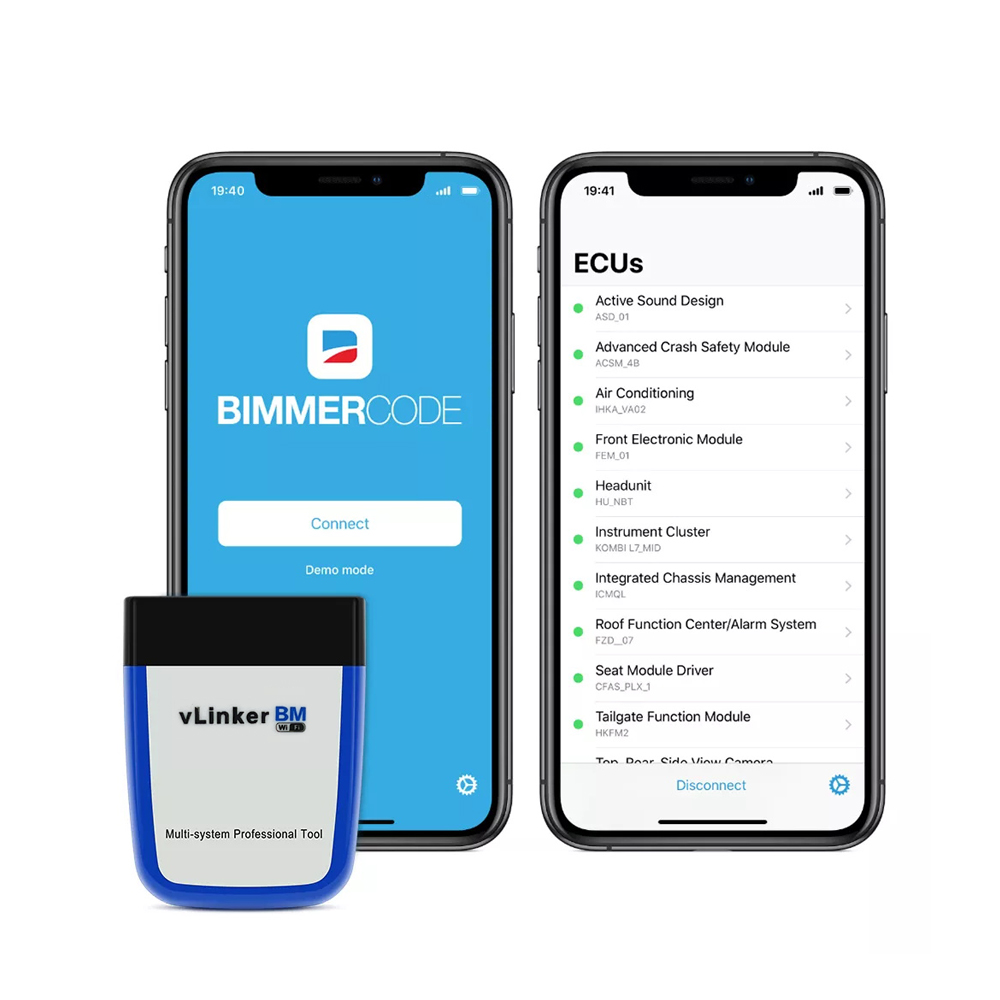

Vgate vLinker BM WiFi OBD2 Diagnostic Scanner (iOS & Android) - Made for BimmerCode

Tips: Support OEM

Vgate vLinker BM OBD2 scanner for WIFI code reader is a diagnostic scan tool, trip computer, logger, and real-time performance monitor.

 1、Transform your iOS, Android device, or Windows PC into a professional-grade diagnostic scan tool.

  2、Vgate vLinker BM WiFi obd2 scan tool is the upgraded version of Vgate iCar Pro, specifically for coding APP that requires large amount of data transmission.

          Work with iOS, Android & Windows.

          Recommended by BimmerCode, designed for BMW.

          This pocket-size obd2 WiFi adapter won't obstruct driver legroom and features unparalleled performance, intelligent sleep mode, exceptional third party app support.

 NOTE:The firmware of BimmerCode supporting E and R series models before 2008 has been tested and will be released soon, please wait for the update.

Vgate vLinker BM WIFI Supported for BMW models:

For BMW 1 Series F20 F21

For BMW 2 Series F22 F23 F87

For BMW 2 Series Active Tourer F45

For BMW 2 Series Gran Tourer F46

For BMW 3 Series F30 F31 F34 F35 F80

For BMW 4 Series F32 F33 F36 F82 F83

For BMW 5 Series FO7 F10 F11 F18 F90

For BMW 5 Series G30 G31

For BMW 6 Series F06 F12 F13

For BMW Series F01 F02 F03 F04

For BMW 7 Series G11

For BMW X1 F48

For BMW X2 F39

For BMW X3 F25

For BMW X3 GO1

For BMW X4 F26

For BMW X5 F15 F85

For BMW X6 F16 F86

For BMW i3

For BMW i8

For Mini F54 F55 F56 F57 F60

Compared with the Vgate iCar Pro series, the Vgate vLinker BM series has any improvement?

USART data buffer up to 2K bytes, baud rate increased to 500Kbps. Faster, more reliable, and more feature-rich than its predecessors.

Not only supports fully compatible ELM327 AT commands, but also compatible with ELM329 AT commands.

OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.

Supports battery voltage drop, OBD bus active, etc. Up to 3 ways to wake up from sleep mode.

Over-voltage, over-current, over-temperature and battery drain protection.

TP transmission protocol, Ensure wireless communication security.

Superior compatibility-works with more 3rd party apps & software than any other adapter.

Support Protocols

Multiple protocols：

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols：

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additionalprotocols：

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

vLinker BM WIFI for Android--Car Scanner

Vgate vLinker BM WiFi Connection Steps - For Android

Android & iOS Device - For detailed steps, please refer to the instruction manual carefully to avoid operating errors.

# Android System Operation Steps **

1. Insert the product into the OBD interface of the car.

2. Turn ignition to Key On Engine Off Position.

3. Turn on Wi-Fi on the phone.

4. Search for the device name "vLinker BM" and connect.

5. Note: You need to click "Decline" when your phone displays the prompt as in Step 5. Otherwise the connection will fail. (You can not use network when connect Wi-Fi.)

6. If the connection is successful, you can open the APP to set up the connection.

# iOS System Operation Steps **

1. Plug the product into the OBD2 interface of the car.

2. Turn ignition to Key On Engine Off Position.

3. Turn on WLAN on the phone.

4. Search for the device name "vLinker BM" and connect.

5. If the connection is successful, you can open the APP to set up the connection.

* NOTE: In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.

## NOTE: The firmware of BimmerCode supporting E and R series models before 2008 has been tested and will be released soon, please wait for the update.

1 x Vgate vLinker BM WIFI

1 x User manual
