Vgate vLinker FD+ ELM327 V2.2 Forscan for ford Bluetooth for Mazda VCM2 IDS ELM 327 OBD 2 OBD2 Car Diagnostic MS CAN Auto Tool

1.Our store sells the original vlinker，We have software to test if is original vLinker, if you need you can contact us，Avoid getting fake vLinker from other stores

2.If you use Bluetooth 4.0 to Connected, please connect Bluetooth directly in the diagnostic APP

3.Vlinker FD+ also support other cars with OBD2 standard protocols

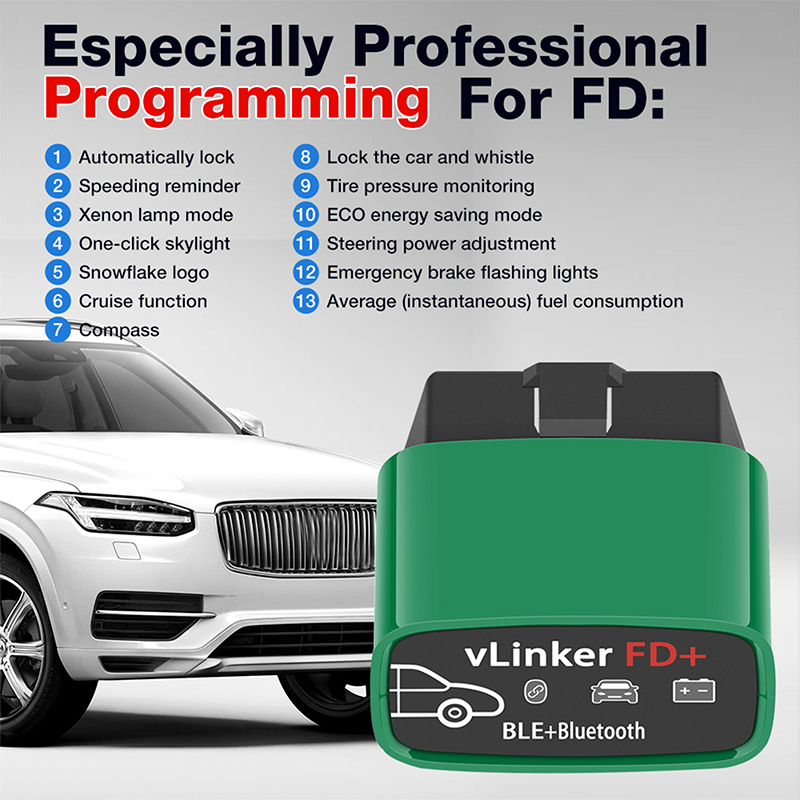

Vgate FD+ Professional Refresh Hidden Scanner Perfectly Compatible With

FORscan For Ford13+ DETECTION FUNCTION

1. Automatically lock

2. Speeding reminder

3. Emergency brake flashing lights

4. Lock the car and whistle

5. Xenon lamp mode

6. One-click skylight

7. Tire pressure monitoring

8. Snowflake logo

9. Cruise function

10. Compass

11. Average (instantaneous) fuel consumption

12.ECO energy saving mode

13. Steering power adjustment

Vgate vLinker FD+ Support Protocols

Multiple protocols：

--15 ELM format protocols;

-- 23 STN format protocols;

-- Up to 64 user-defined protocols.

OBDII 5 standard protocols：

-- SAE J1850 VPW

-- SAE J1850 PWM

-- ISO 9141-2

-- ISO 14230-4

-- ISO 15765-4 CAN

Additional protocols：

-- SAE J1939 CAN

-- ISO 11898 (raw CAN)

--Medium Speed（MS CAN）

These protocolscover almost 99% of the OBDII Cars on the market

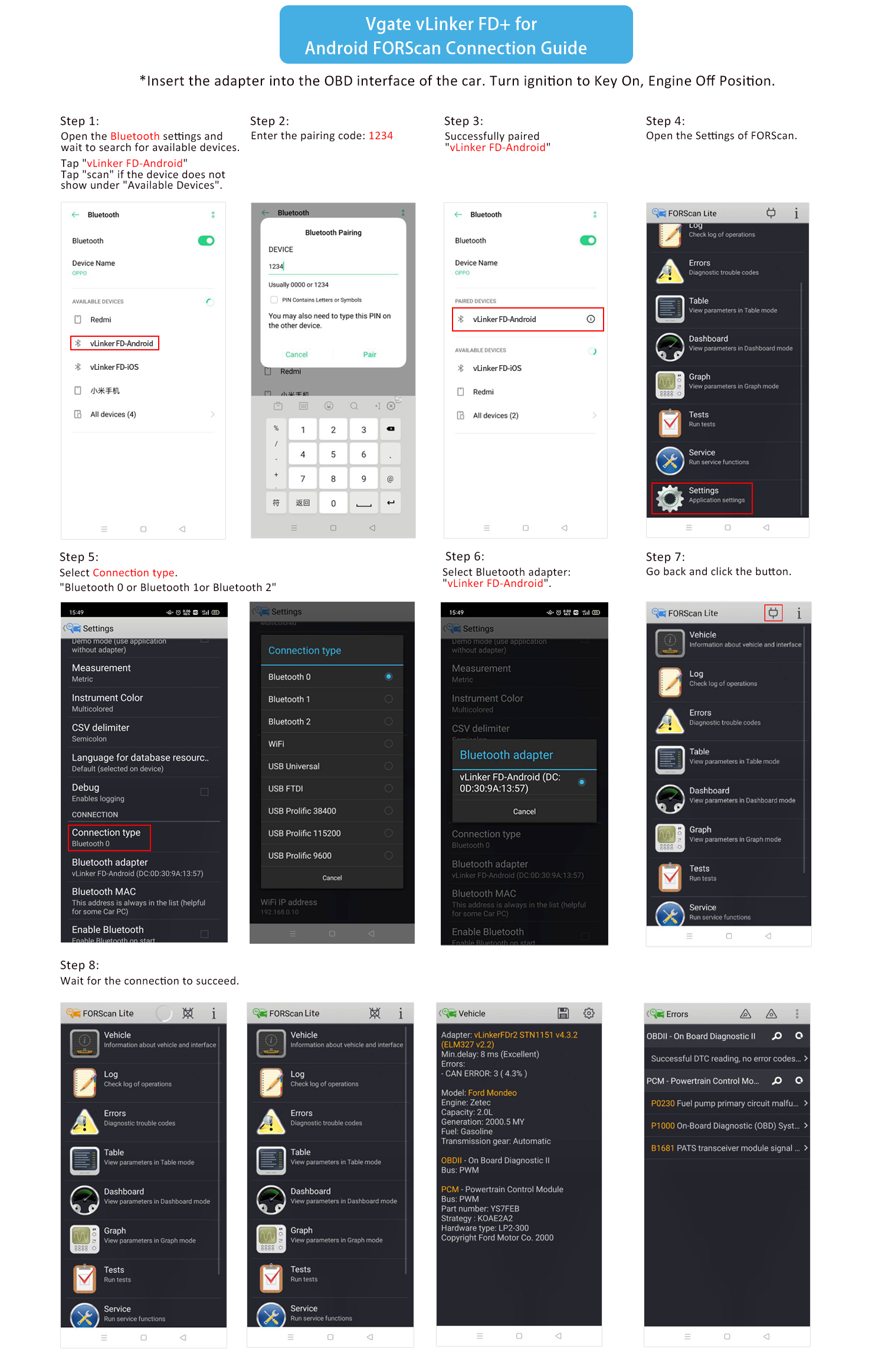

Vgate vLinker FD+ Bluetooth Operation Steps - For Android

Android & iOS Device - For detailed steps, please refer to the instruction manual carefully to avoid operating errors.

# Android System Operation Steps ** - Vgate vLinker FD+

1. Insert the product into the OBD interface of the car.

2. Turn ignition to Key On Engine Off Position

3. Turn on Bluetooth on the phone.

4. NOTE: Search for the device name "vLinker FD" or "vLinker FD-Android "and click Pair.

(For Android system) Attention!! Do Not pair "vLinker FD+" or "vLinker FD-IOS".

5. Enter the Pairing Code: 1234 . If the pairing is successful, you can open the APP to set up the connection.

# iOS System Operation Steps ** - Vgate vLinker FD+

1. Plug the product into the OBD2 interface of the car.

2. Turn ignition to Key On Engine Off Position

3. Turn on Bluetooth on the phone.

4. No need to configure Bluetooth device name in the phone. Just enable Bluetooth button on the iOS device and continue to the OBD app setting.

* NOTE: In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.

1 x Vgate vLinker FD+ BT4.0

1 x User manual
