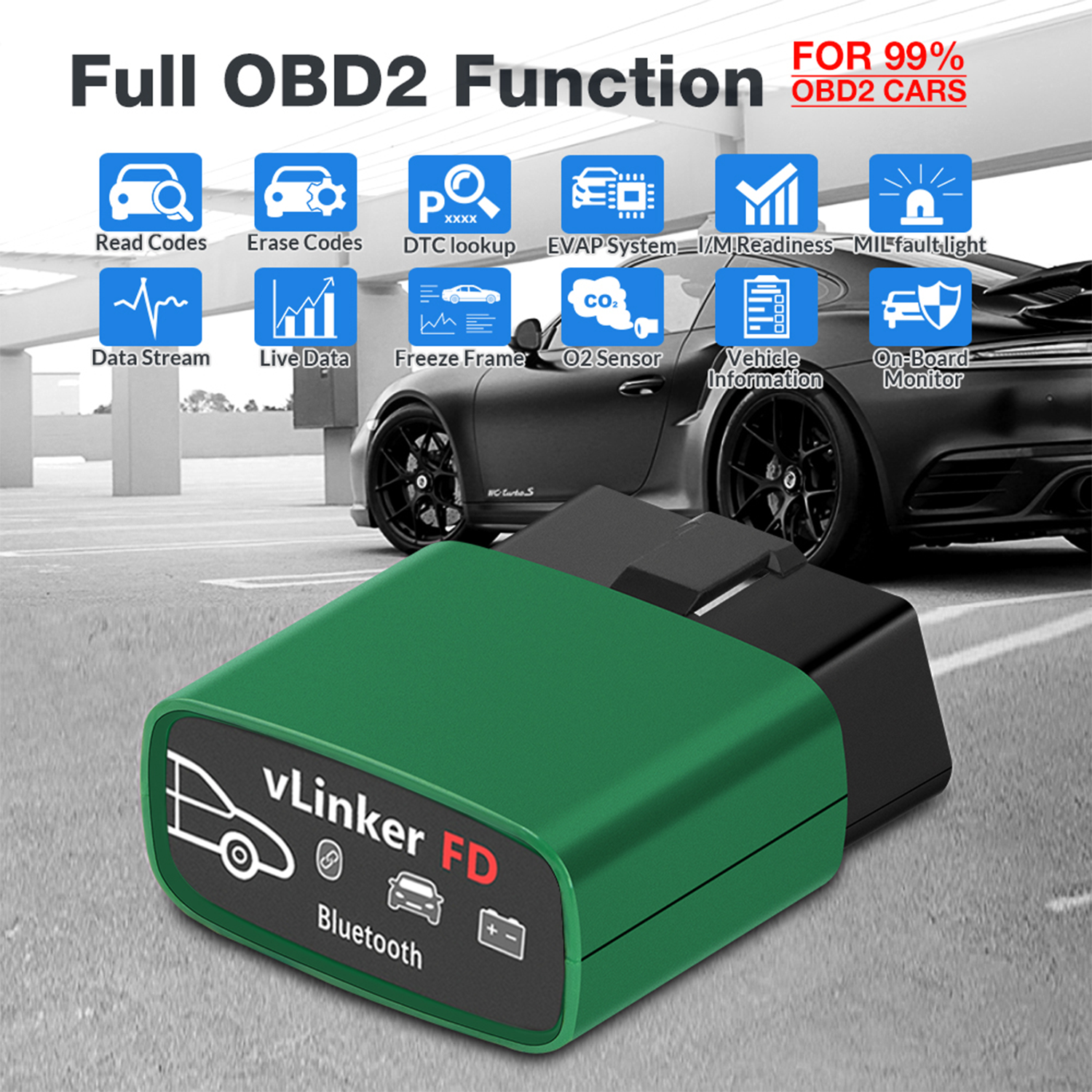

Vgate vLinker FD Bluetooth OBD2 Code Reader for Android & Windows - Support Medium Speed CAN(MS-CAN)

1.Vgate vLinker FD is a Bluetooth diagnostic scan tool, trip computer, logger, and real-time performance monitor.

2.Transform your Android device, or Windows PC into a professional-grade diagnostic scan tool (iOS devices are not supported).

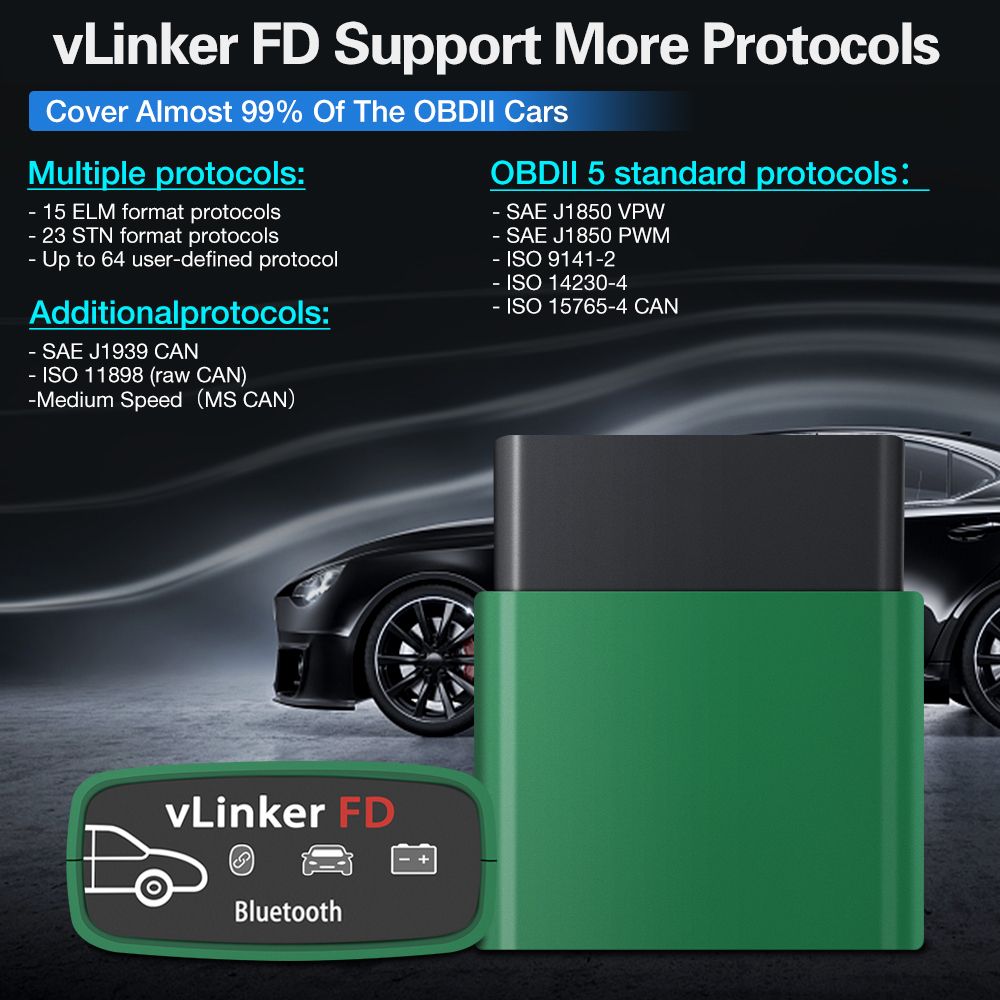

3.The vLinker FD Bluetooth OBD-II adapter provides access to MS-CAN networks in addition to the 5 legislated OBD-II protocols.

4.Does not work with iPhone - For Android & Windows only

5.This pocket-size adapter won't obstruct driver legroom and features unparalleled performance, intelligent sleep mode, exceptional third party app support.

Wider Car Compatibility

  Vgate vLinker FD Bluetooth works with all 1996 and newer 12V petrol cars compatible with standard OBD2 protocols, and all 1996 and newer 12V small diesel vehicles with a load of 6.5T or less supporting the OBD2 protocols.

Do not use on a 24V power diesel car.

  The vLinker FD proprietary connection algorithm enables FD to connect to more makes and models than any other scan tool. It also provides access to MS-CAN networks in addition to all legislated OBD-II protocols.

More Mainstream Apps

  APPs: TORQUE Lite/Pro, JScan, OBD Fusion, DashCommand, Car Scanner ELM OBD2, BimmerCode, BimmerLink, inCarDoc, etc.

  There are more apps waiting to be explored. Works with more 3rd party apps & software than any other adapter.

BatterySaver Technology

  Thanks to the unique BatterySaver technology you can rest assured that, unlike other OBD adapters, Vgate vLinker FD won't drain your battery if you leave it plugged in.

  Operating Current is 51 mA, automatic sleep in idle state, sleep current is as low as 3mA.

Compared with the Vgate iCar Pro series, the Vgate vLinker FD series has any improvement?

  USART data buffer up to 2K bytes, baud rate increased to 500Kbps. Faster, more reliable, and more feature-rich than its predecessors.

  OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.

  Supports battery voltage drop, OBD bus active, etc. Up to 3 ways to wake up from sleep mode.

  Over-voltage, over-current, over-temperature and battery drain protection, firmware updates.

Vgate  vLinker FD for Android FORScan Connection Guide

Vgate vLinker FD Bluetooth Operation Steps

For Android Device - For detailed steps, please refer to the instruction manual carefully to avoid operating errors.

# Android System Operation Steps - Vgate vLinker FD

1、Insert the product into the OBD interface of the car.

2、Turn ignition to Key On Engine Off Position.

3、Turn on Bluetooth on the phone.

4、Search for the device name "vLinker FD" and click Pair.

5、Enter the pairing code: 1234 . If the pairing is successful, you can open the APP to set up the connection.

* In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.

1 x Vgate vLinker FD BT3.0

1 x User manual
