Tips: Support OEM

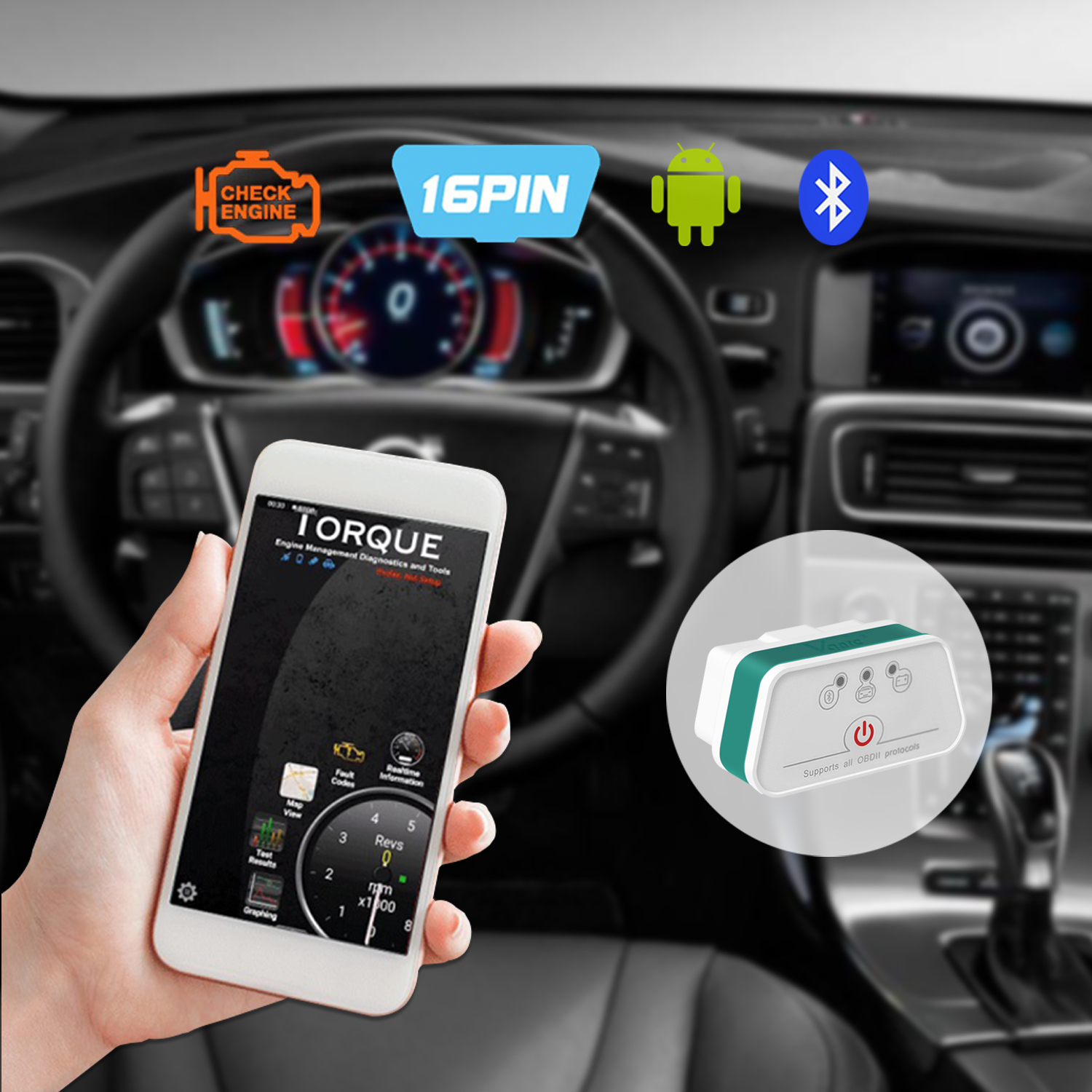

Vgate icar2 BT3.0 features:

1.Small size, compact structure. Plug and never unplug.

2.Eight colors for your choice. (According to our experience, the Full Black, Black & Orange, and Black&white are the most favorabled colors).

3.Half an hour auto sleep when you donot use it, which could Save power for you.

4.Supports most OBDII protocols.

5.The adapter uses the fastest and most reliable ARM chip.

The icar2 BT3.0 support:
1.Works with most OBD-II compliant vehicles.
2.BT-3.0 5~10 meter.

3.BT-3.0 support Android.

ICar 2 scantool is a automotive code reader, supports OBD-II protocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

Vgate iCar2 BT3.0 Version Functions:

The device is a small adapter that plugged into the vehicle OBD-connector.

On Wi-Fi, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:

* Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.

* Measure the fuel consumption.

* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.

How to connect the Vgate iCar2 OBD2 Bluetooth-compatible Adapter:

1.  Clear your Bluetooth-compatibleD connection history, find the ELM327 device , and connect it, password is : 1234 ( If Wifi version , pls choose wifi connect )

2.  Open the software , and set it as the picture steps (  If Wifi version , pls choose wifi connect )  :

3. Click these two places of the picture, and wait for 30 seconds , it will connect successful

1x Newest Original Vgate iCar2 BT3.0

1 x User Manual
