Vgate iCar Pro elm327 V2.3 OBD 2 OBD2 Car Auto diagnostic Scanner WIFI Bluetooth 4.0 for IOS Scan Tool ODB2

Tips: Support OEM

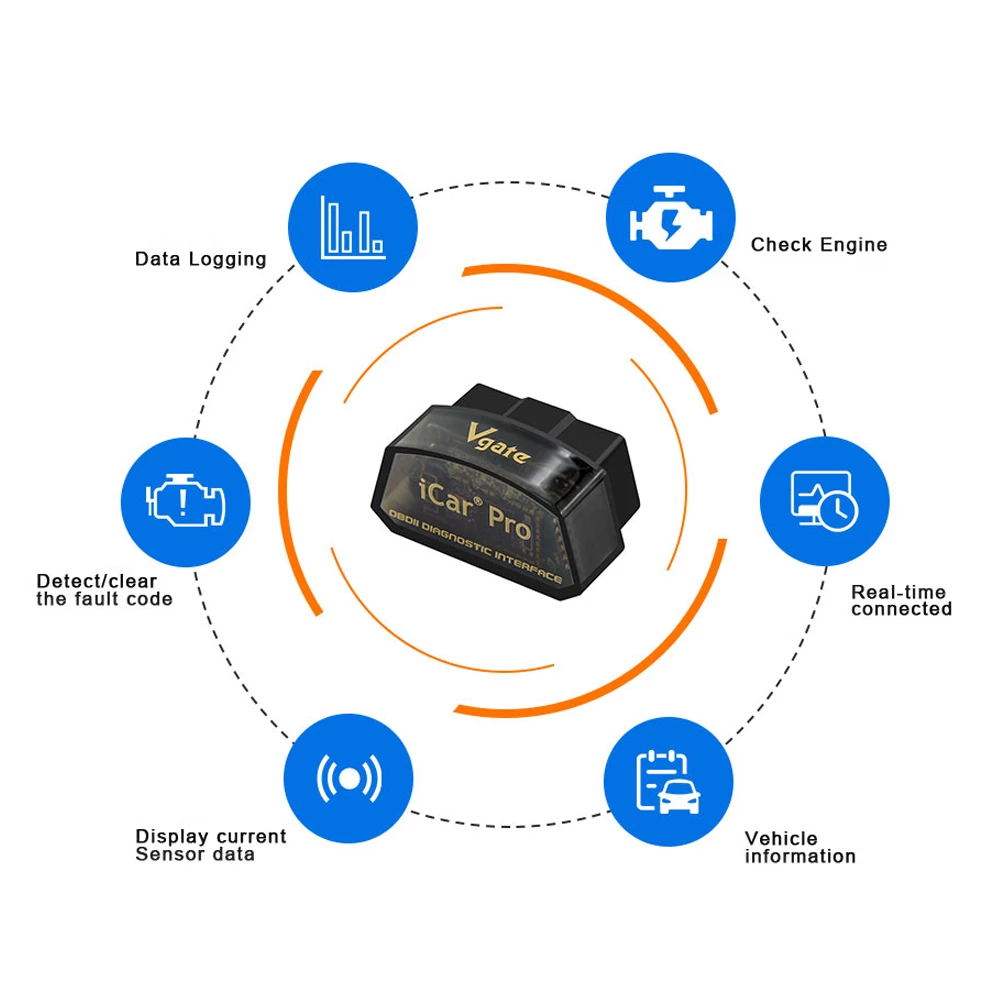

Features:

•Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
•Clear trouble codes and turn off the MIL ("Check Engine" light)
•Engine RPM
•Calculated Load Value
•Coolant Temperature
•Fuel System Status
•Vehicle Speed
•Short Term Fuel Trim
•Long Term Fuel Trim
•Intake Manifold Pressure
•Timing Advance
•Intake Air Temperature
•Air Flow Rate
•Absolute Throttle Position
•Oxygen sensor voltages/associated short term fuel trims
•Fuel System status
•Fuel Pressure

100% Original iCar Pro Connection Method：

1.BT3.0 for Android
2.BT4.0 for Android/IOS
3.WIFI for Android/IOS

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250 * Kbaud)

USER1 CAN (11 * bit ID, 125 * Kbaud)

USER2 CAN (11 * bit ID, 50 * kbaud)

* Default Settings (User Adjustable)

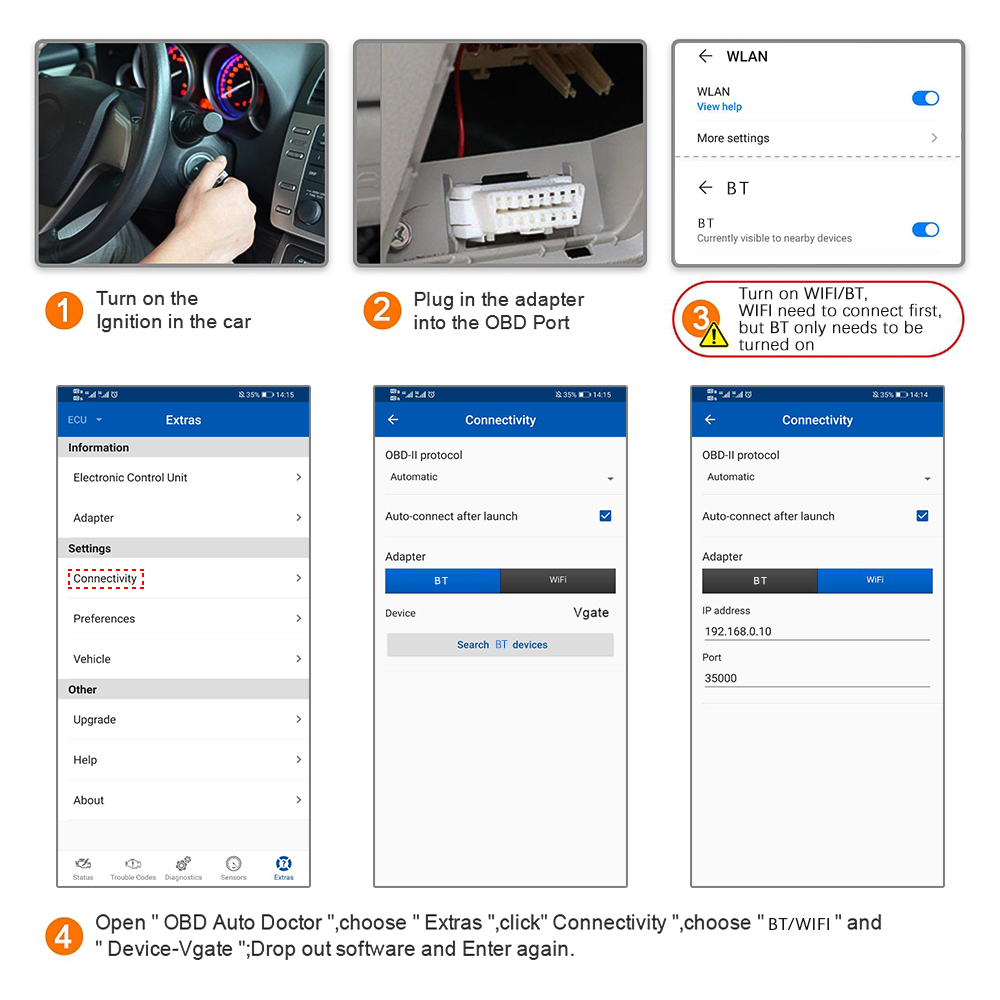

How to connect Vgate iCar Pro:

NOTE for IOS User:

Just Enable Bluetooth on the IOS device, Then configure Bluetooth device name in the OBD app setting.

## DO NOT Need to pair Bluetooth Name on IOS device. ##

NOTE for Android User:

The two names IOS-VLINK and ANDROID-VLINK will be displayed), it can only be connected to the ANDROID-VLINK name.

Low Energy Consumption

 After the engine is stopped for 30 minutes, Vgate iCar Pro Bluetooth 4.0 goes to sleep and won't drain your automobile's battery.

Vgate iCar Pro Support Automatic Start/Sleep（Electric vehicles are not supported this function）：

  1.When the car is ignited, iCar Pro will automatically start

  2.30 minutes after the car stalls, iCar Pro will automatically sleep

Supports online firmware updates：

        Note: Pirated products cannot be upgraded

1pc x Vgate iCar Pro BLE4.0 OBDII adapter

1pc x User manual
